Automatic Casting Machine

Categories

Casting

Molding Machine

TEL:+86 532-86386858
MOBILE:+86-15966868666
WhatsApp:+86-15966868666
E-MAIL:admin@kaihe-trade.com

Enquiry

Product Details

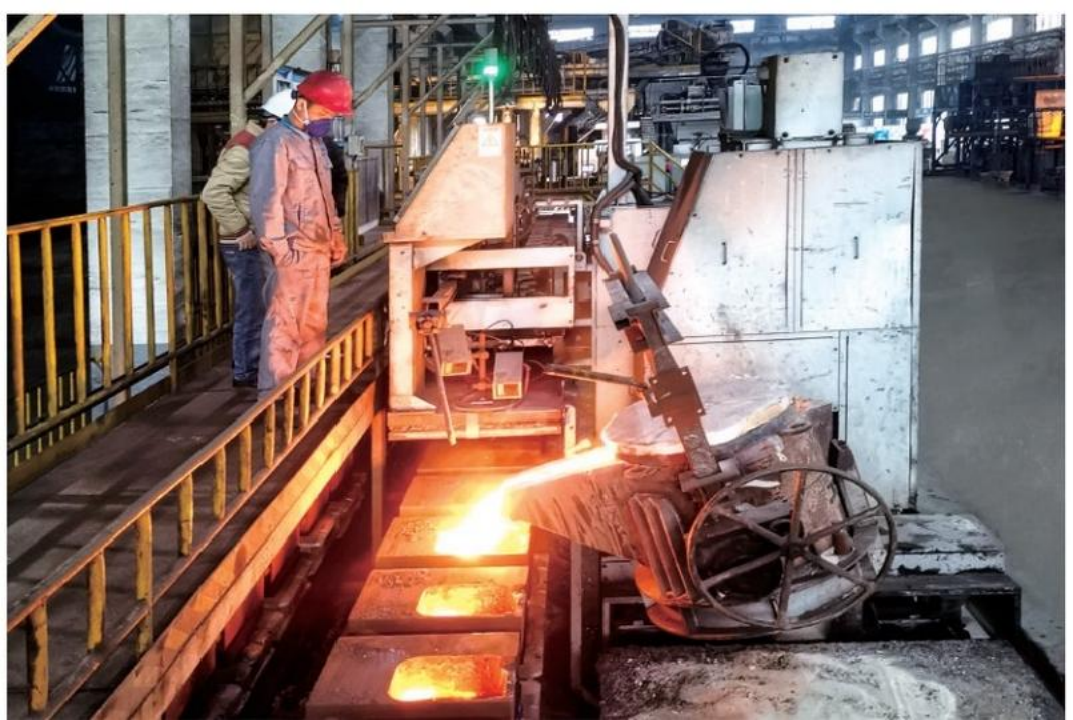

1. The servo controls the three-axis linkage of the pouring ladle's tilt, up and down and forward and backward movements at the same time, which can achieve accurate synchronous casting position. Ensuring the safety of operators can greatly improve casting accuracy and yield.

2. High-precision weighing sensors ensure the casting weight control of each molten iron mold.

3. After adding molten iron to the pouring ladle, press the automatic run button. The sand mold memory function of the pouring machine will automatically and accurately move to the uncast castable sand mold farthest from the molding machine and automatically align it with the gate for casting.

4. After each sand mold is completed, it will automatically move to the next castable sand mold to continue casting.

5. Automatically skip pre-marked non-casting sand molds.

6. The small screw feeding mechanism is controlled by the servo to control the stepless adjustment of the synchronous feeding amount of the inoculant to realize the inoculation function with the flow of molten iron.

型号

JNJZ-1

JNJZ-2

JNJZ-3

浇包容量

450-650ko

700-900kg

1000-1250kg

造型速度

25秒/型

30秒/型

浇铸时间

小于13秒

小于18秒

浇铸量控制

由称重传感器实时控制重量

注铁水速度

2-10kg/秒

2-12kg/秒

驱动方式

伺服+变频驱动
